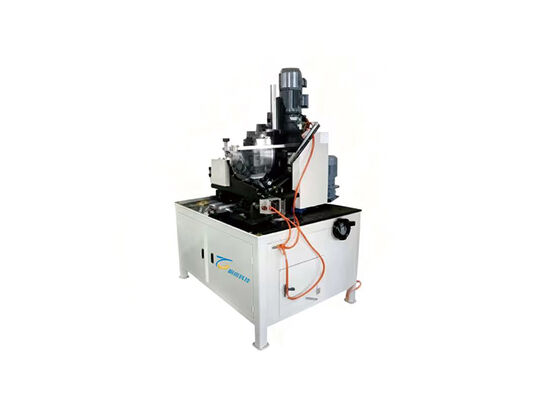

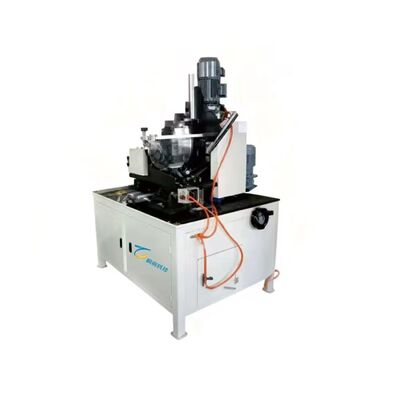

Filter Spiral Coiling Machine for Inner and Outer Layers

1
MOQ
4500-6000
Prix
Filter Spiral Coiling Machine for Inner and Outer Layers
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Source d'alimentation: Électrique
Rapport d'essai de machines: Fourni
Temps de garantie: 1 an
Dimension: 1400*1000*1700 (L*L*H)
Informatisé: Oui
Origine du produit: Bengbu Anhui Chine
Mettre en évidence:

spiral coiling machine for air filters

,

inner outer layer filter machine

,

air filter production coiling equipment
Informations de base
Lieu d'origine: Anhui Bengbu
Nom de marque: Bengbu Tongchen
Numéro de modèle: TCFH-700
Conditions de paiement et expédition
Détails d'emballage: boîte en bois
Délai de livraison: 15-45 jours
Conditions de paiement: T/T
Capacité d'approvisionnement: Approvisionnement illimité
Description de produit
Filter Spiral Coiling Machine for Inner and Outer Layers
The filter spiral mesh coiling machine features automatic mesh coiling and forming, along with automatic mesh cutting and trimming. The main unit employs PLC control and utilizes specialized variable-frequency motors for safe and efficient operation. It offers simple operation and convenient adjustment.
Product Parameters
Item Specification
Maximum Production Capacity 3-5 m/min
Material Requirement 109 mm
Material Thickness Diamond mesh: 0.4-0.8 mm; Perforated mesh: 0.3-0.5 mm
Production Pipe Diameter 80-500 mm
Production Height 150 mm and above
Compressed Air 0.6-0.8MPa
Overall Dimensions 1400 × 1000 × 1700 mm
Total Weight 700 kg
Total Power 2.7 kW
Power Supply 3P 380V / 50Hz
Applicable Materials Galvanized sheet, stainless steel, and various carbon steels
Application Scope Interior and exterior decorative mesh for various filters
Main Features
Filter Spiral Coiling Machine for Inner and Outer Layers 0
  • Automatic mesh coiling, forming, cutting, and trimming
  • Noise-free pneumatic roll shearing system
  • Variable-frequency speed control suitable for non-stop cutting
  • Adjustable mold system with dual positioning for precision
  • 24V DC low-voltage safety control circuit
  • Touchscreen digital control with automatic parameter memory
  • Capable of producing both diamond mesh and perforated tubes
  • Wide production pipe diameter range: 80-500 mm
  • High automation reduces labor requirements
  • Smooth, accurate, and noise-free cutting performance
  • Fast size adjustment (approx. 10 minutes)
  • Stable tube forming with precise dimensional accuracy
  • Compatible with multiple metals such as galvanized sheet, stainless steel, and carbon steel
  • Optimized digital production with stored size parameters
  • Suitable for both inner and outer decorative filter mesh production
Product Details

(1) The main unit utilizes pneumatic roll shearing for cutting, ensuring noise-free operation, smooth cut surfaces, and reliable safety.

(2) Variable-frequency speed control enables non-stop cutting, delivering precise and smooth cut edges.

(3) Adjustable molds facilitate easy modification and cost savings. Dual positioning ensures precise, uniform tube dimensions and stable, rapid production.

(4) Size adjustments (expansion/contraction) and angle realignment take approximately ten minutes with a straightforward process.

(5) The control circuit adopts 24V DC, which enhances operational safety.

(6) The equipment uses touchscreen digital control and automatically stores dimensional parameters, minimizing production complexity.

(7) This machine offers a wide range of producible tube diameters. A single unit can manufacture diamond mesh and perforated plates, meeting most manufacturers' production requirements.

Company Profile
Filter Spiral Coiling Machine for Inner and Outer Layers 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
Filter Spiral Coiling Machine for Inner and Outer Layers 2 Filter Spiral Coiling Machine for Inner and Outer Layers 3
FAQ
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
